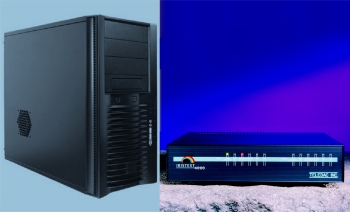

 Tellimage-MP Specifications Tellimage-MP System with Image+ PC on the left and the I-4000 Message controller. New Platform image.
1.   DESCRIPTION
NOTE:
This information is subject to change.
Please contact TELEDAC INC. for specifications on the new Tellimage-MP platform.




The new platform for Tellimage-MP System contains 2 modules: Image+ PC and the I-4000 Message display scheduling controller.

I-Reach+ software is built-in Tellimage-MP. It is used to create and schedule messages on IRISTEXT alpha graphic pages. These messages may include digital photos, JPEG, Bitmap (BMP) images or even more: a motion picture broadcast window.

Windows 7 Pro plus an Ethernet LAN interface are included in Image+ PC to ease image and video file transfers from many sources on the network. The new PC used in this platform....expansion.

The PinP+DVE process is adding Digital Video Effects capabilities to display in real time, a video channel into a variable size window (Picture in picture). The DVE input can switch between 2 video sources on a page per page basis.

The MP feature is used to broadcast video documents from files. This option is compatible with PinP+DVE if it is necessary to scale down the motion picture display zone or to add transition effects.

Tellimage-MP includes MP, PinP+DVE and I-AUDIO features. These features were not included in previous generation Tellimage units but are still available for them as options.


2.   PICTURE STORAGE CAPACITY 3.  PICTURE TRANSITIONS 4.  PICTURE ACCESS TIME

- Basic 930 Gb hard-disk capacity
  Initial capacity increasing regularly
  Enlargeable initially at small extra cost

- Contact Teledac for details


Digital Fade Effects/Still Pictures:
- Cross fade
- Fade to black
- Fade from black
- Immediate


- Less than 0.5 Sec (BMP)

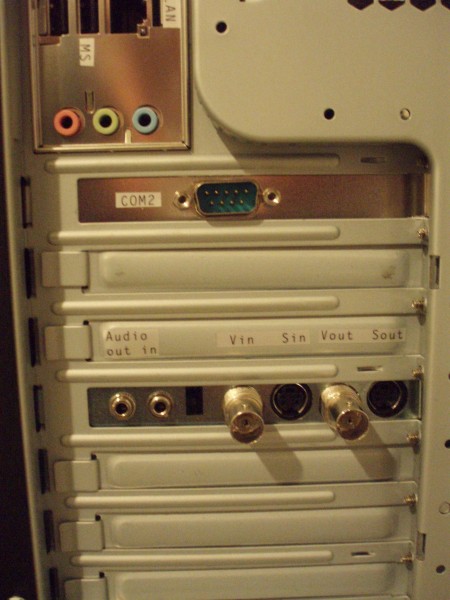

5.  BROADCAST QUALITY OUTPUT Image+ A/V connectors on Back Panel
(measurement report available)

- NTSC RS-170A
- Aspect Ratio: 4:3
- 2 simultaneous outputs:
   1 composite (BNC connector) and
   1 Y/C (4 pins mini-din connector)
- Can "Genlock" on selected input
6. RESOLUTION 7. PICTURE FILE FORMATS


- Horizontal: 540 lines
- 720 X 486 (ITU-R 601 STD)
- YUV 4:2:2
- Quantization: 8+8 bits lum.+chroma



- JPEG
- BMP 24 bits (Win+OS/2 Bitmap)
- YUV (4:2:2, Teledac Photo+)

8.  PinP+DVE FEATURE          Options info

Live Input Channel

- "Picture in Picture" Broadcast with Digital Zoom Effects during transitions
- Adjustable window size from 0% to 100% (x, y separately or not)
- Adjustable Effect duration: 0.1 to 5.0 seconds
- The live input can switch between 2 video sources on a page per page basis
- Auto skip live broadcast upon lost of signal, selectable function
- Video input format: 2 NTSC video sources,
   1 composite (BNC connector ) with switch-able 75 Ohms termination and
   1 Y/C (4 pins mini-din connector)
- Integrated time base corrector (frame base)


Video File Playback

- "Picture in Picture" broadcast with Digital Zoom Effects during transitions
- Video files can play in native format or ajusted aspect ratio
- Adjustable Effect duration: 0.1 to 5.0 seconds

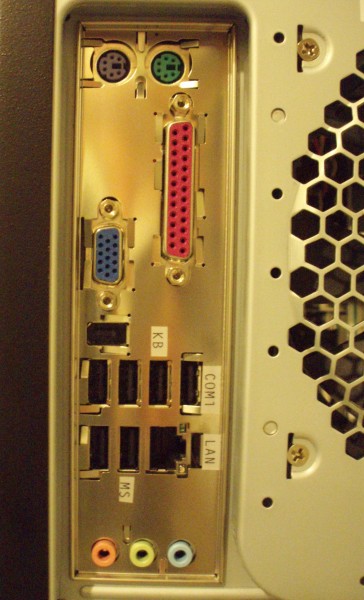

9.  LOCAL AREA NETWORK INTERFACE Ethernet and Serial interface on Back Panel
- Allows other computers on the network to exchange or update still picture, video and audio files with Image+
- Ethernet IEEE 802.3 10/100 base T
- TCP/IP, NetBEUI and IPX/SPX protocol support



10.   Professional PC Server Case with Expansion Space
A sturdy metal case server with front accessible HDD installation, a 120mm TriCoolTM exhaust fan & two front 92mm fan mounts and a 550W power supply make expansion, upgrading and accessing a breeze.
Power Supply:
(Tellimage uses less than 10% of this capacity)

TruePower 2.0 550W
ATX12V v2.01 and EPS12V compatible

- Precise ±3% power regulation
- Dedicated power circuitry delivers more reliable output

Advanced cooling and quiet system:

- 1 rear 120mm TriCoolTM 3-speed fan
- 2 front mounts for optional 92mm fans for future expansion
- Side Panel vent

  8 Drive Bays(2 used)

- Front Accessible: 4 x 5.25"
- Internal: 4 x 3.5" removable HDD trays with
rubber grommets to isolate drive vibrations

11.  AUDIO (I-AUDIO)          Options info
- Auxiliary stereo input (3.5 mm connector)
- Stereo output driving high impedance load (>5Kohms), (3.5 mm connector)
- Fade between auxiliary input and audio file for soft voice-over commentary insertions
- PCM format ("wave" file with sampling rate of 11025, 22050, or 44100 samples/sec., mono or stereo, 8 or 16 bits/sample)

12.   FRONT PANEL

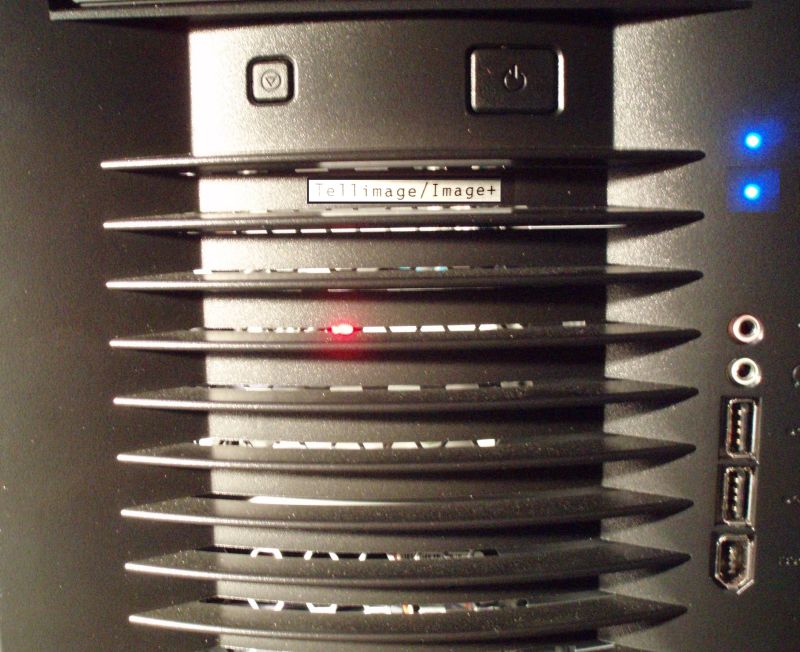

Image+ Front Panel Indicators Indicator Lights

- Power supply (blue)
- Hard disk access (blue)
- Video processor activity (red)

Front Connectors

These ports (unused/Tellimage-MP)
are provided to make access to
your future expansion easier:

- 2 x USB 2.0
- 1 x IEEE 1394 (FireWire®, i.Link®)
- Audio In and Out

Control Buttons

- AC power
- Reset
Floppy Disk Access
- 3.5"
13.   DIMENSIONS


height
height with rubber legs
width
depth
net weight
shipping weight
Shipping size

Image+

17"  (43.2cm)
17.5"  (44.5cm)
8.1"  (20.5cm)
18.5"  (46.8cm)
27.5 lbs.  (12.5 kg)
32.5 lbs.  (14.8 kg)
21.6" x 20" x 10.6"
(55 x 50 x 27 cm)

I-4000

3.5"  (8.9 cm)
3.8"  (9.7 cm)
16.7"  (42.5 cm)
16.0"  (40.6 cm)
8.0 lb  (3.6 kg)
16 lb  (7 kg)
23.25" x 20.5" x 9.5"
(59 x 52 x 24 cm)

14.   POWER


Input voltage range


Input Frequency Range

Input Current


Maximum Power

Power cord

Image+

115 VAC / 230VAC
Selectable

47Hz to 63Hz

.8 A nominal 12.0A max. for 115VAC,
.4 A nominal 6 .0A max. for 230VAC

550 W

Detachable IEC 320 cord

I-4000

90 - 265 VAC
auto-ranging

60 Hz

.3 A nominal .9 A Max for 115VAC
.17 A nominal .5 A Max for 230VAC

40 W

Detachable IEC 320 cord



All specifications subject to change without prior notification.
